Coating Protects Neutralization Sump from Chemical Exposure

After 20 years of service life, a large (80’ x 20’ x 15’) neutralization sump’s coating was beginning to fail. The owner wanted to install a coating that would provide long-term durability for chemical exposure and hold up to structure settlement and cracking.

STRUCTURAL was hired to perform repairs on the tank and to install a new coating system. The project team removed what remained of the original coating, then performed concrete repairs throughout the tank, especially in areas that had damage from steam exposure.

Gallery 01 / 01

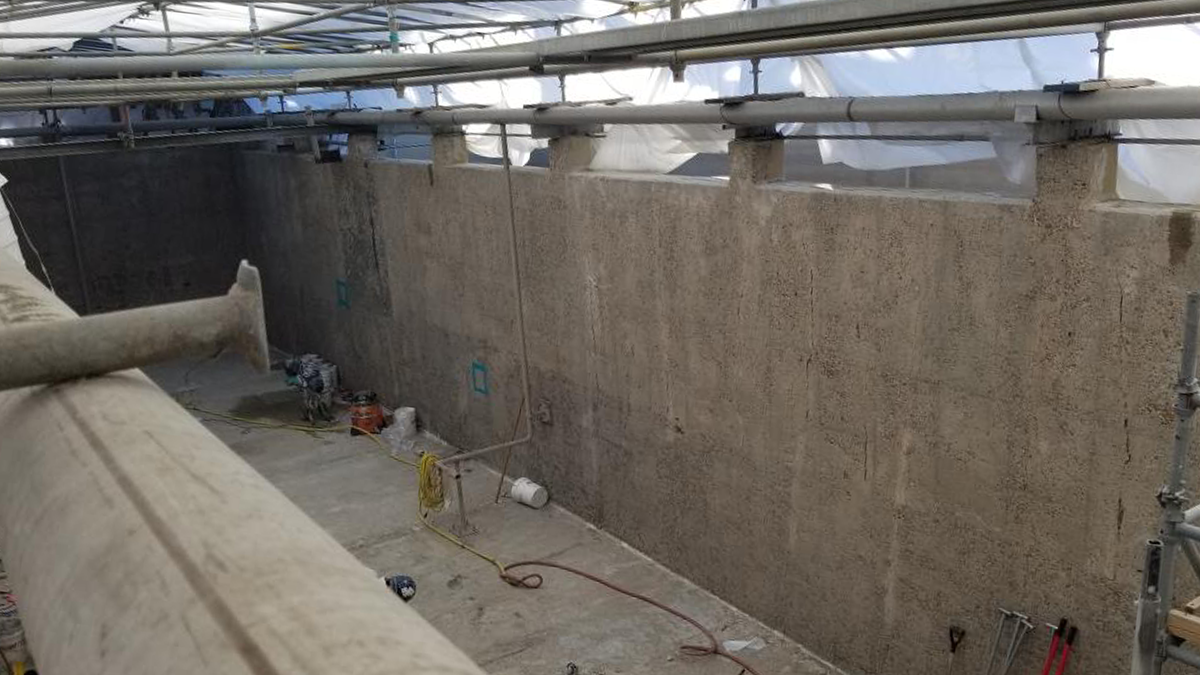

Remaining coating removed and surface prepared. Temporary cover built to provide moisture protection.

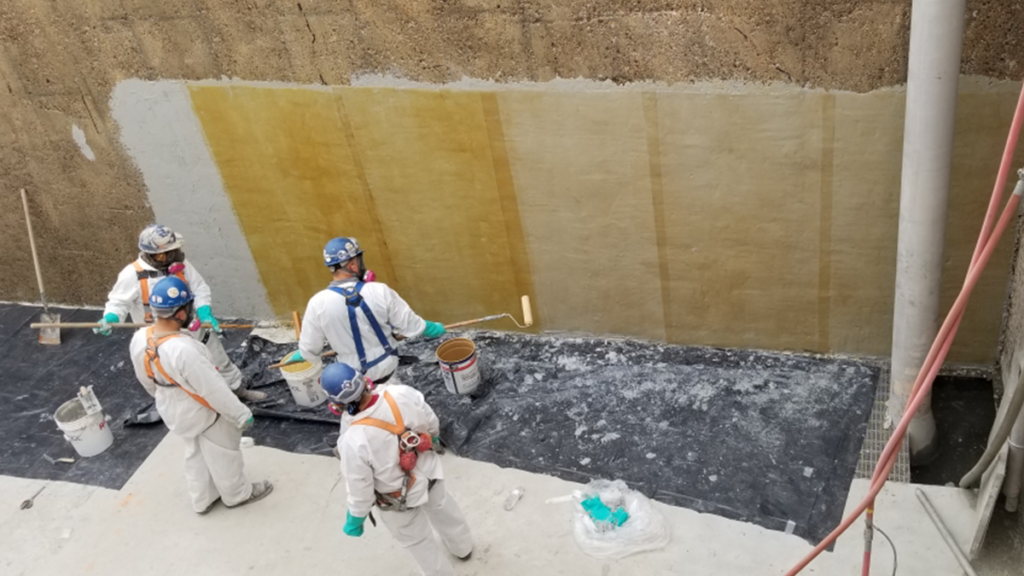

Installation of first level of coating: basecoat (60-80 mils) with fiberglass reinforcement

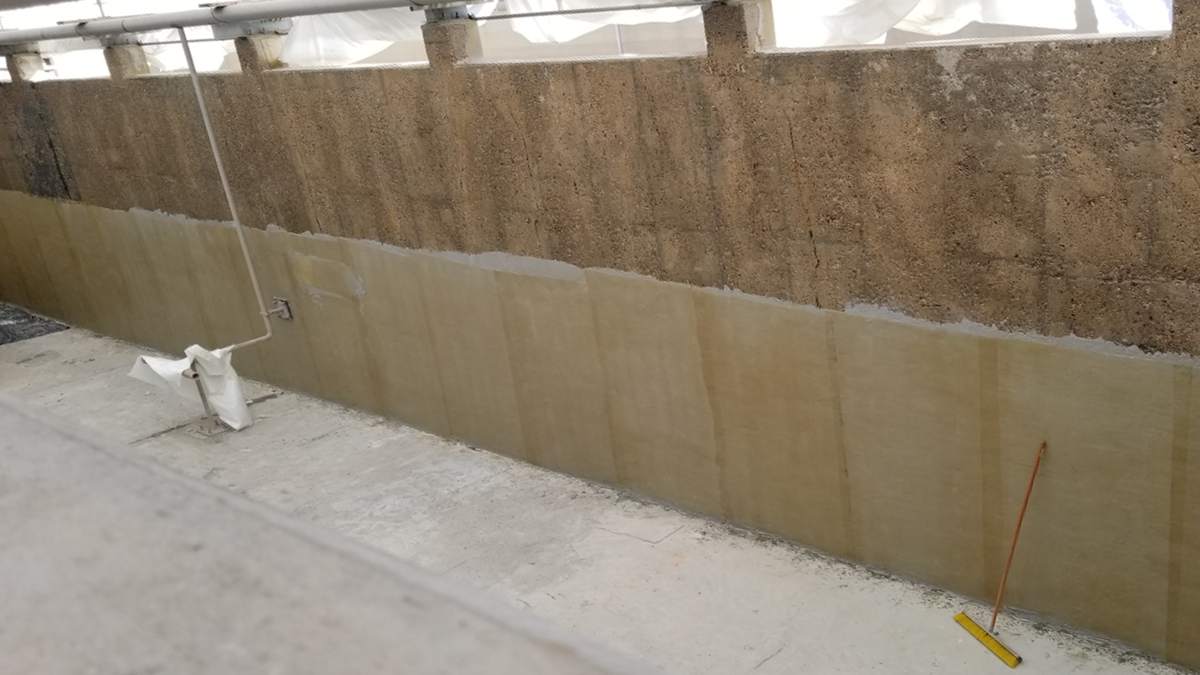

Completed first level installation of basecoat and fiberglass reinforcement

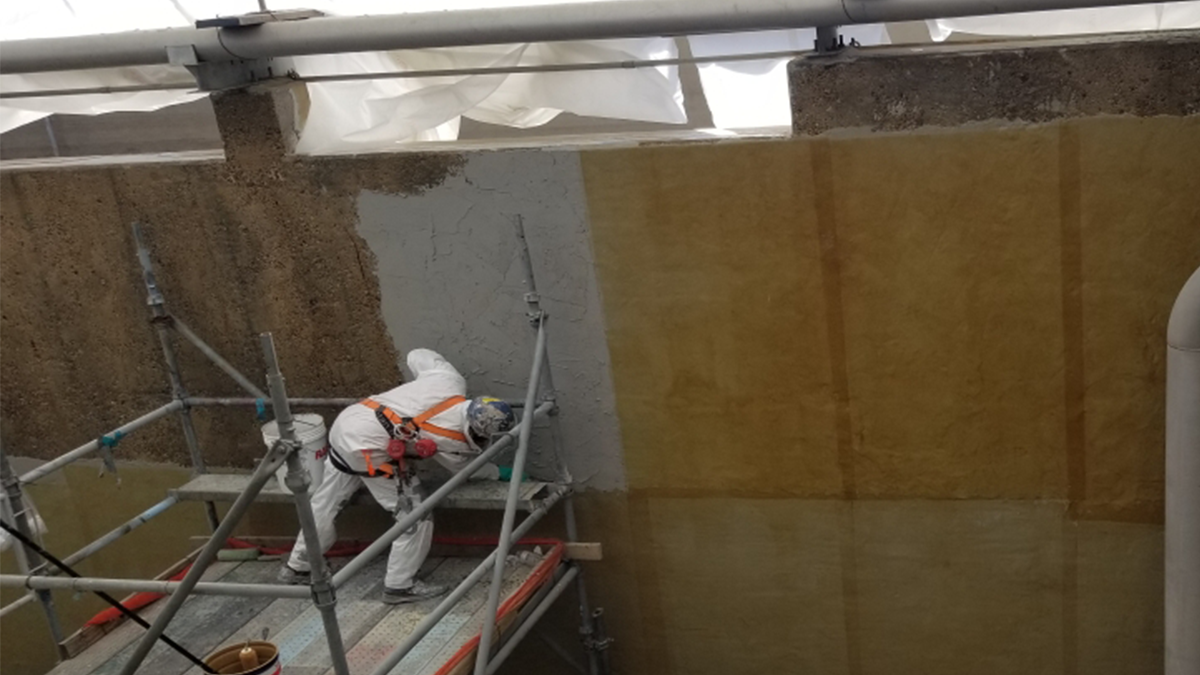

Installation of upper level basecoat and reinforcement

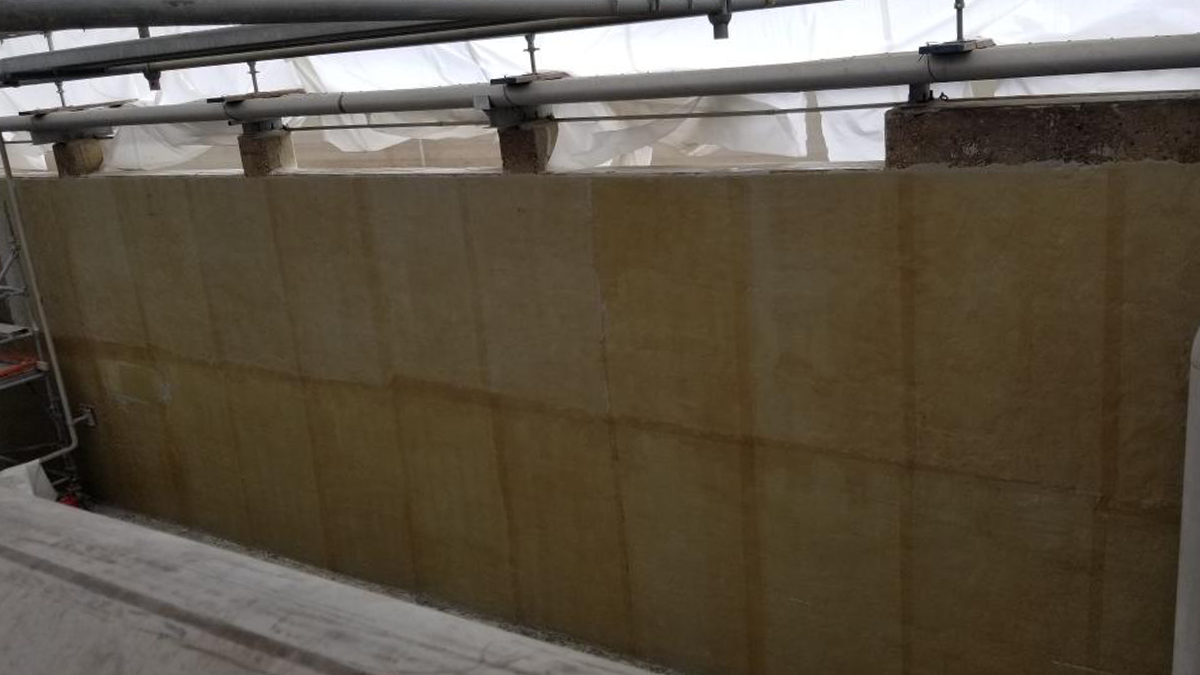

Completed installation of basecoat and reinforcement

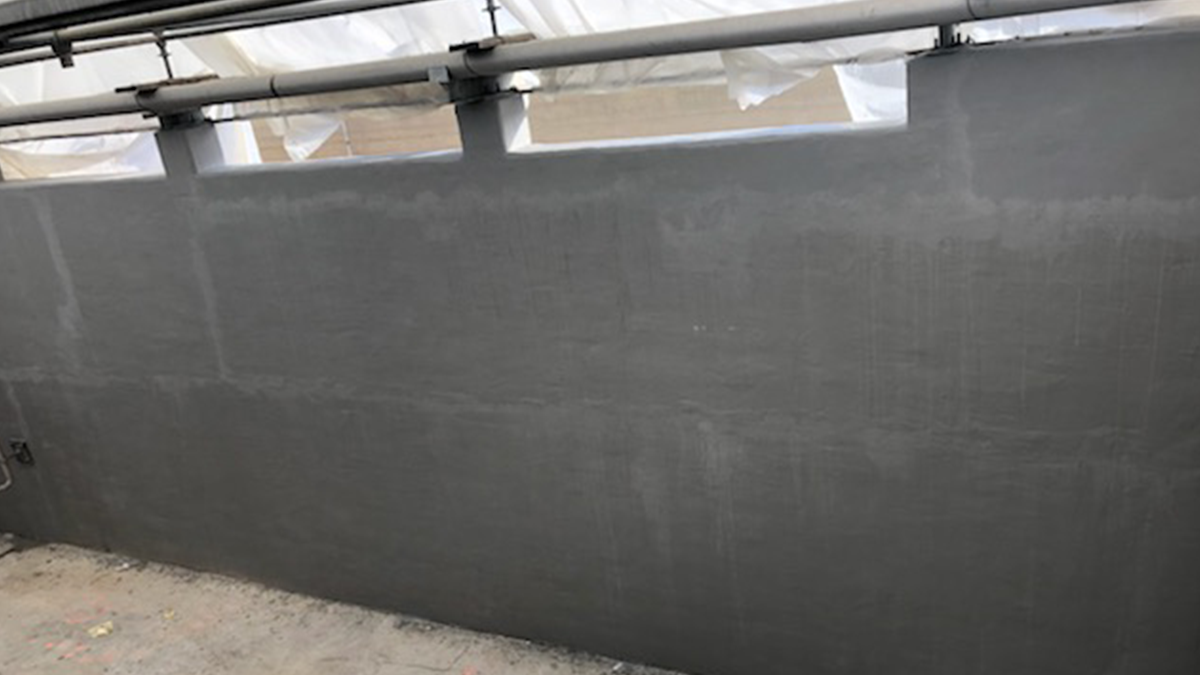

System installation completed with topcoat layer

Project Overview

Large neutralization sump in chemical processing facility
Coating failure from 20+ years of service
Installation of trowel-applied novolac vinyl ester with fiberglass reinforcement

After 20 years of service life, a large (80’ x 20’ x 15’) neutralization sump’s coating was beginning to fail. The owner wanted to install a coating that would provide long-term durability for chemical exposure and hold up to structure settlement and cracking.

STRUCTURAL was hired to perform repairs on the tank and to install a new coating system. The project team removed what remained of the original coating, then performed concrete repairs throughout the tank, especially in areas that had damage from steam exposure. A temporary cover was built to provide moisture protection during repairs. The team then installed a trowel-applied novolac vinyl ester coating system with fiberglass reinforcement throughout the sump. The system was carefully selected to hold up to chemical exposure as well as movement and settlement of the structure. Repairs took place during an outage over 11 weeks.
