An oil refinery in the United States was experiencing vibration in a large hydrogen compressor. During a scheduled turnaround, the equipment was removed for service and the owner decided to repair and strengthen the foundation system.
STRUCTURAL was contracted to demolish portions of the existing foundation, install new anchor bolts, place new concrete and install an epoxy grout.
Gallery 01 / 01

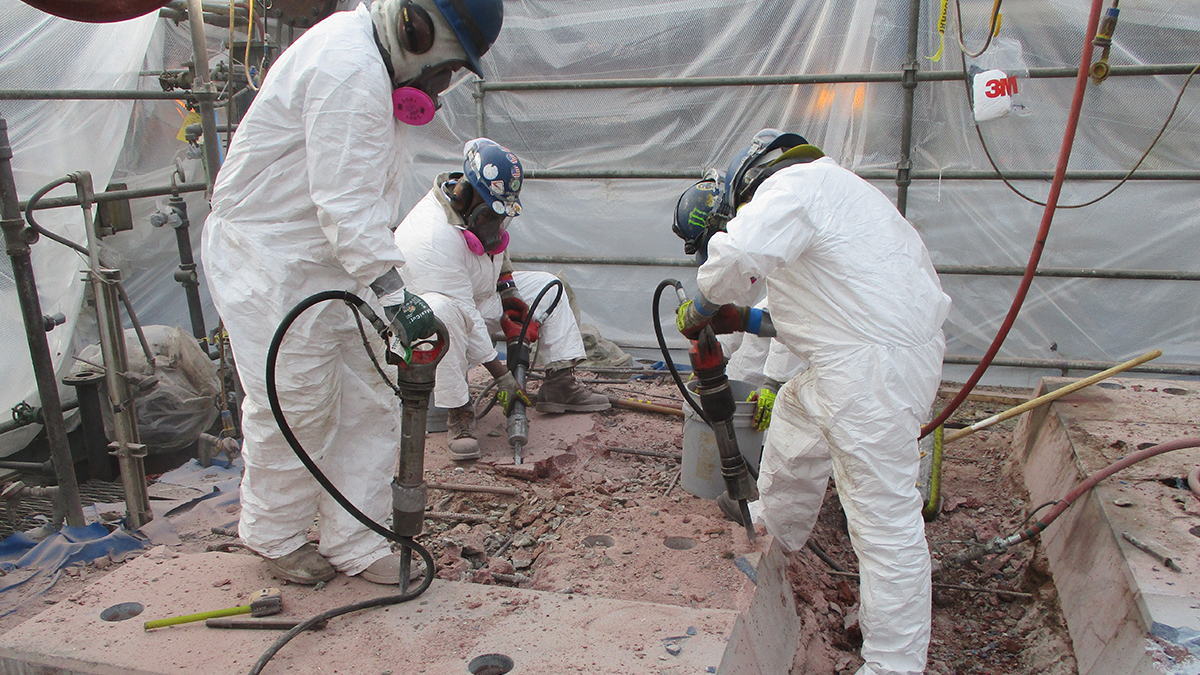

Removal of the grout and concrete from top of the foundation

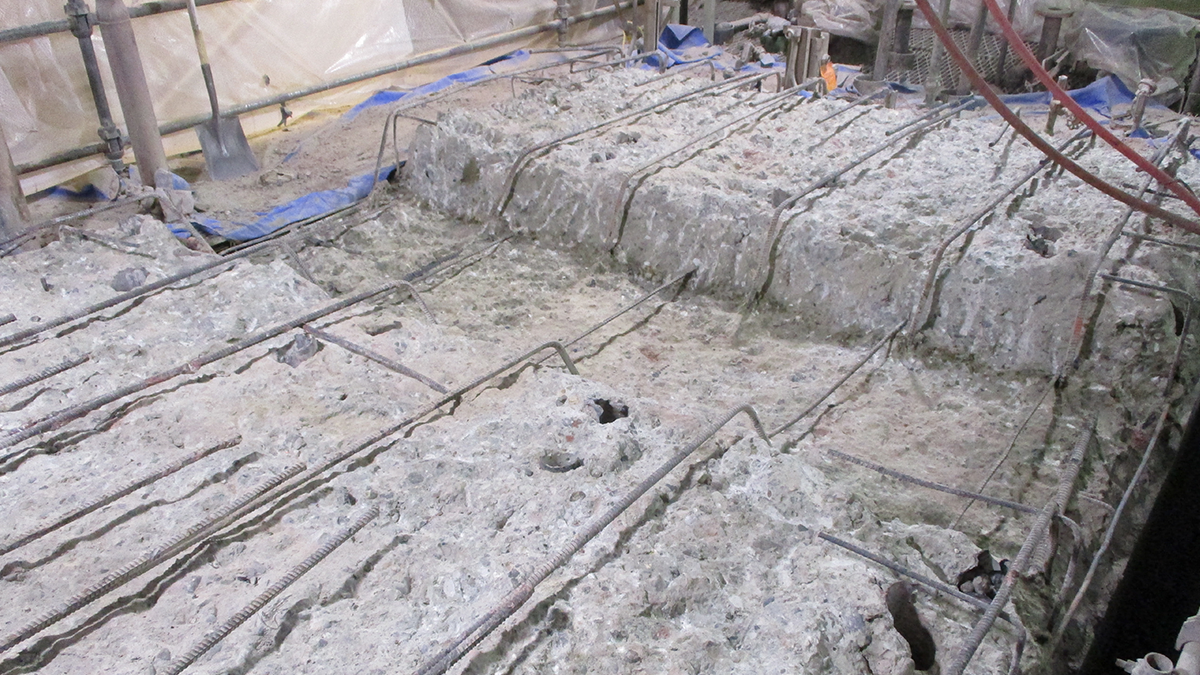

Completed removal of the top concrete layer

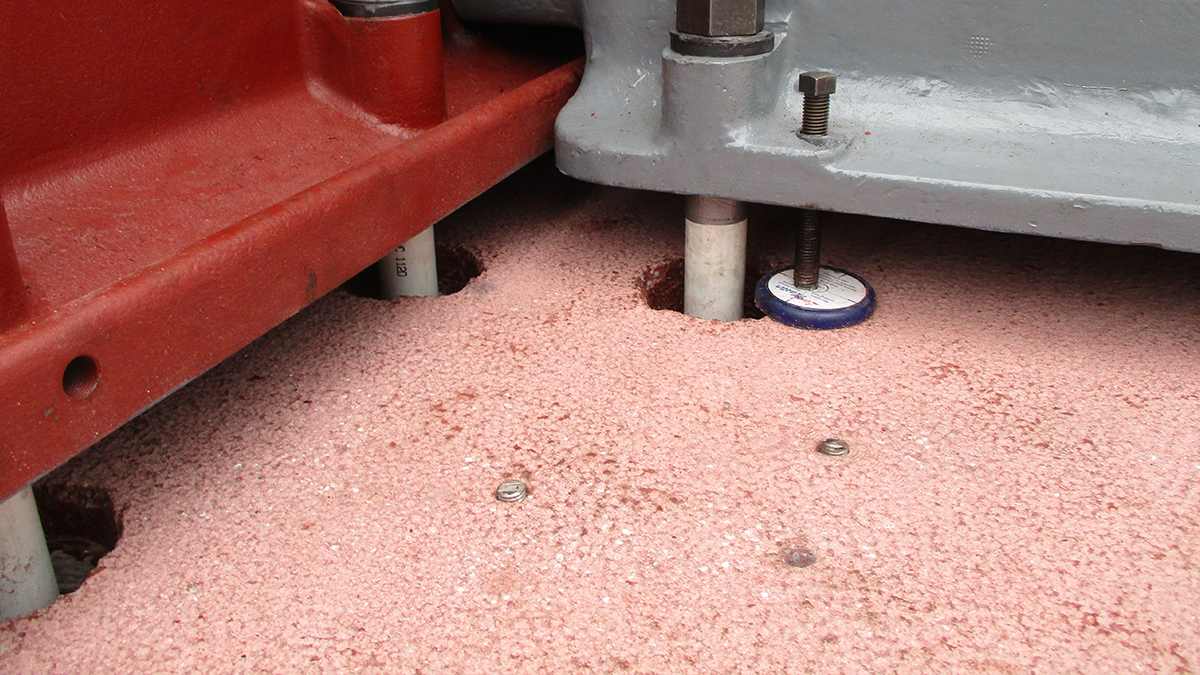

Installation of new anchor bolts

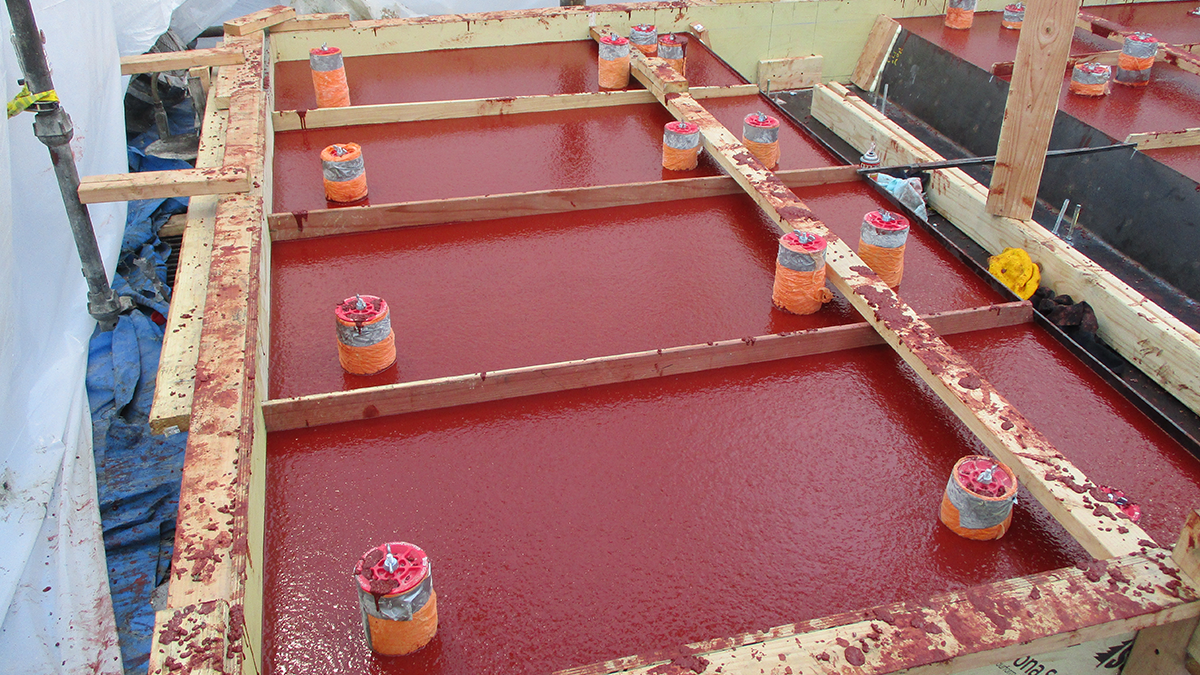

New grout poured

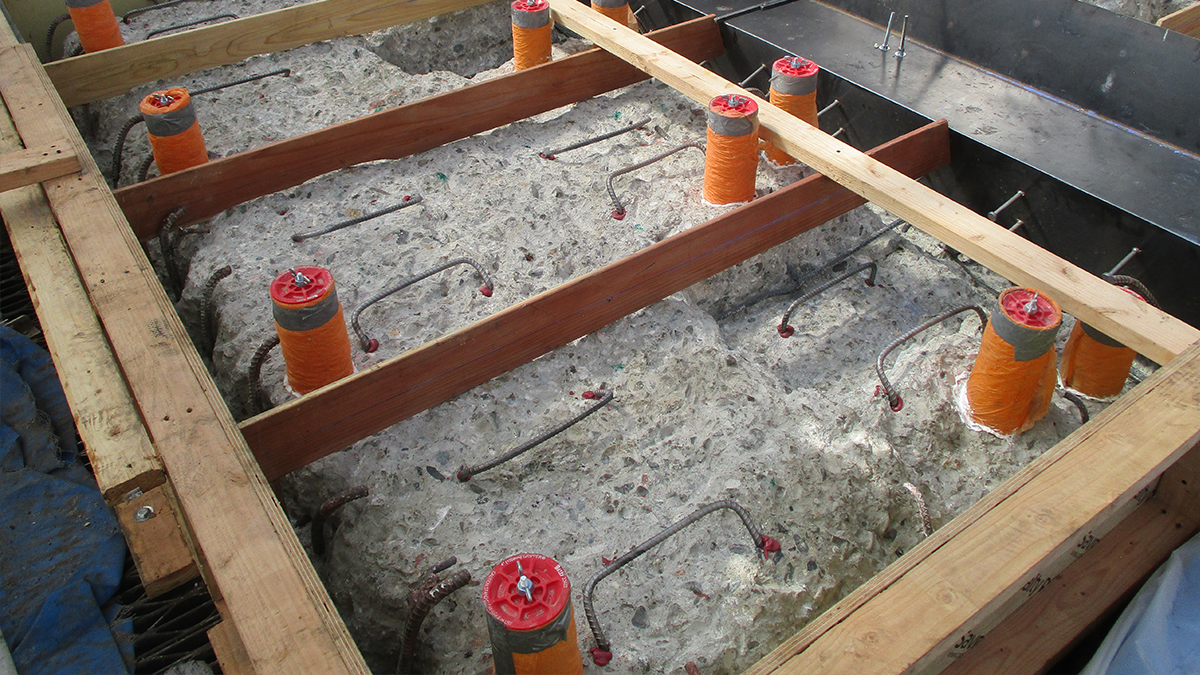

Anchor and jack bolts installed and ready for grout

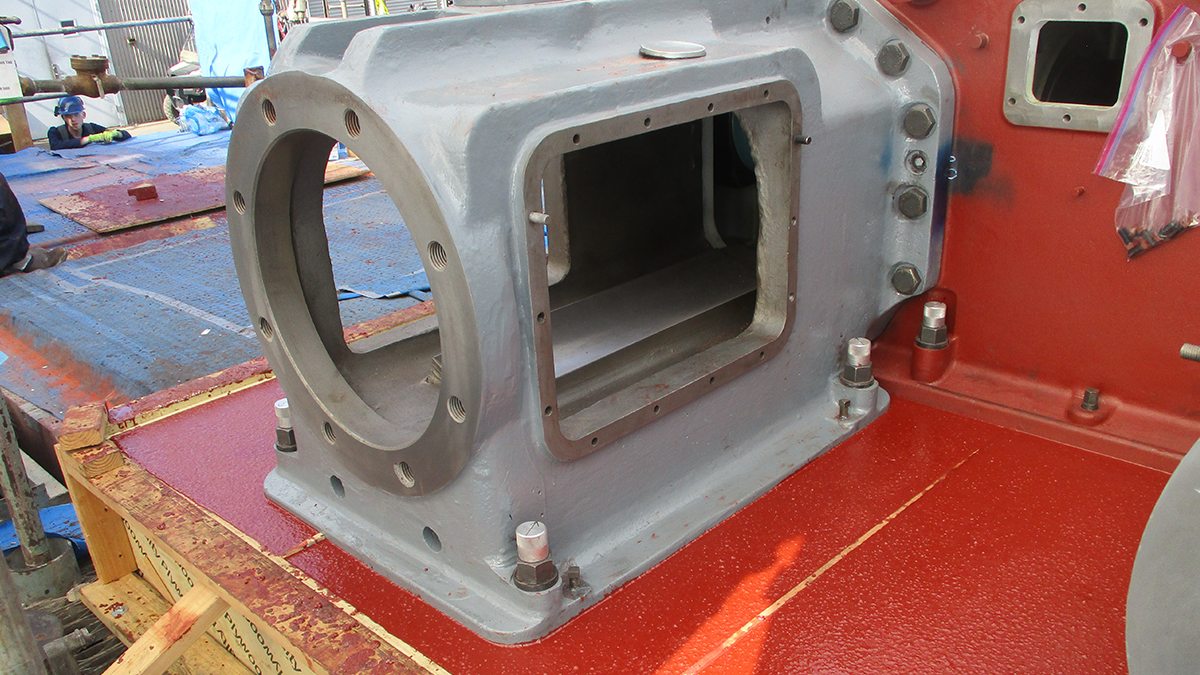

Equipment installation
Watermain showed signs of corrosion
Project Overview
An oil refinery in the United States was experiencing vibration in a large hydrogen compressor. During a scheduled turnaround, the equipment was removed for service and the owner decided to repair and strengthen the foundation system.
STRUCTURAL was contracted to demolish portions of the existing foundation, install new anchor bolts, place new concrete and install an epoxy grout.
The entire foundation repair project was safely completed in 9 days. After the compressor was restarted, an analysis revealed that frame movement was reduced from 7 mils (0.007”) to 1 mil (0.001”), decreasing movement by 86%.
PROJECT VIDEO
PROJECT INFO
- Location: United States
- Specialty Contractor: STRUCTURAL
