A North American refinery had 2 underperforming cooling tower supply lines due to deterioration. The pipes (36” in diameter and 300 ft. long) had thinning walls, breaches, leaking water and severe steel pipe pitting. Not scheduled for an outage for another 3-5 years, the refinery needed a repair.
STRUCTURAL developed a solution for the client that allowed the work to be performed while the cooling tower was operational.
Gallery 01 / 01

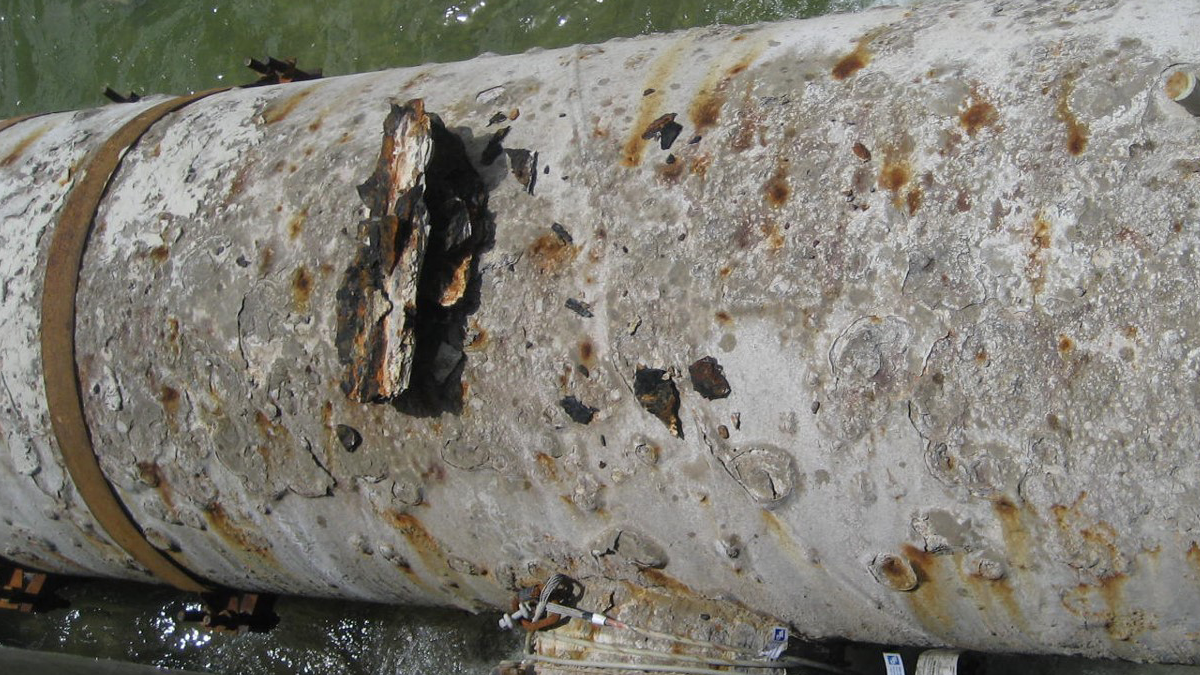

Steel pipes had multiple breaches and leaking

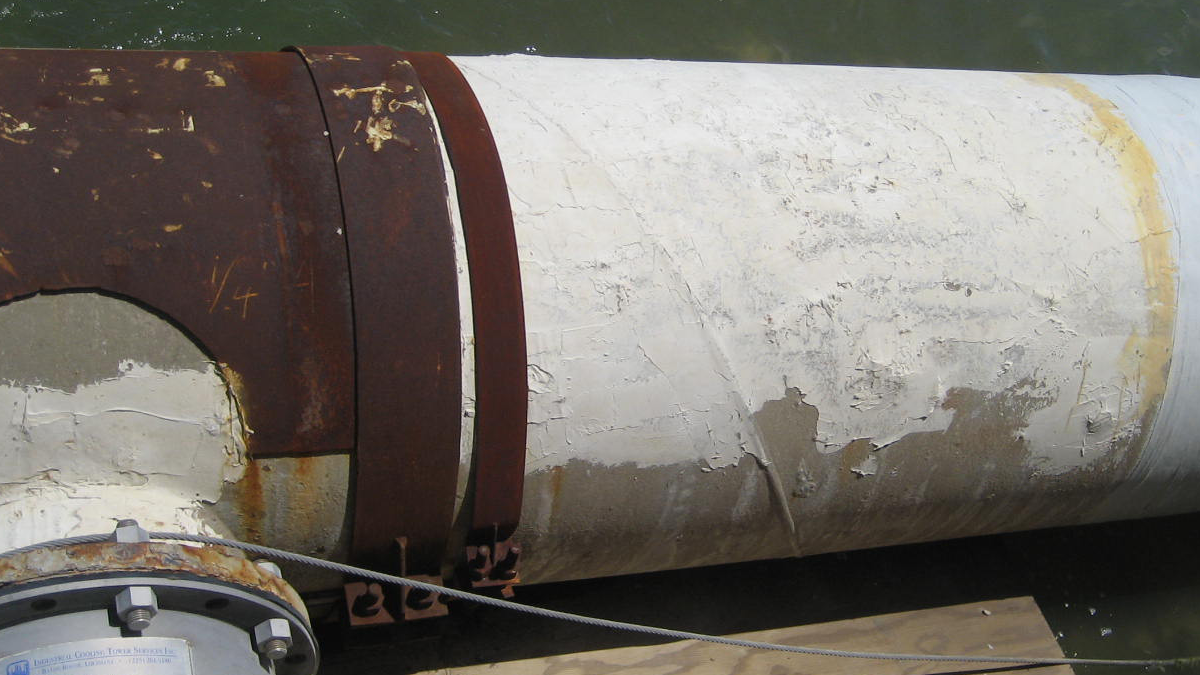

Pipes were resurfaced using an epoxy to fill in pitted areas

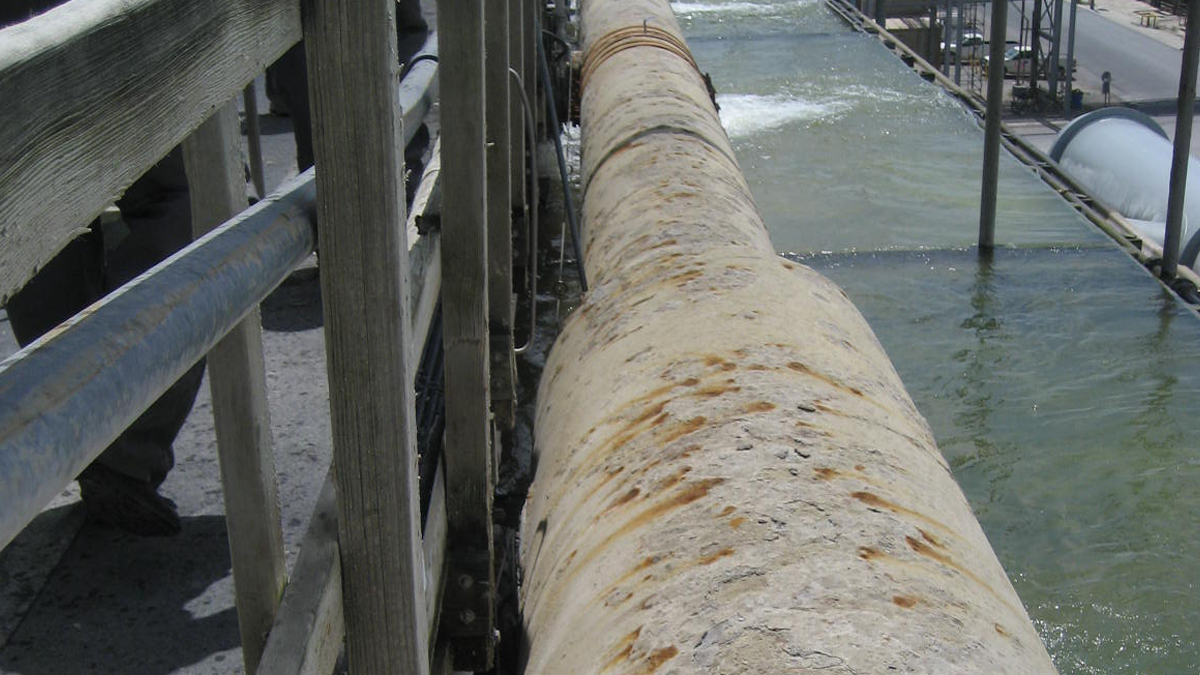

Cooling tower line (300 feet) showed signs of deterioration

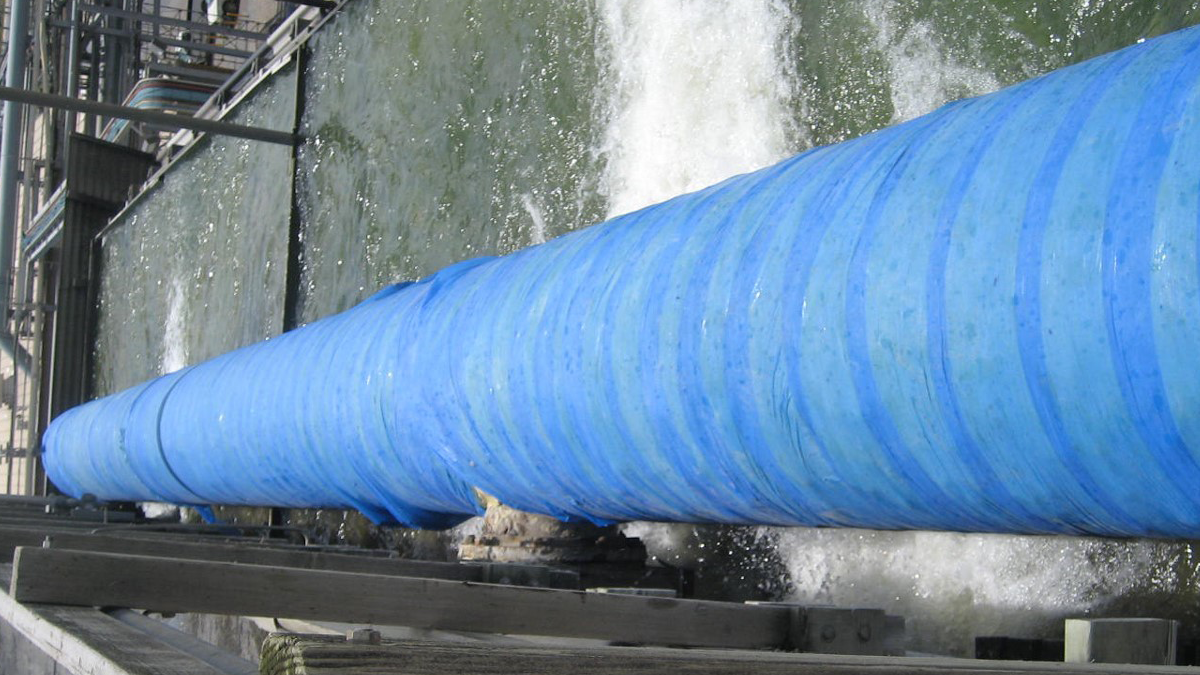

Four layers of urethane glass fiber wrap were installed

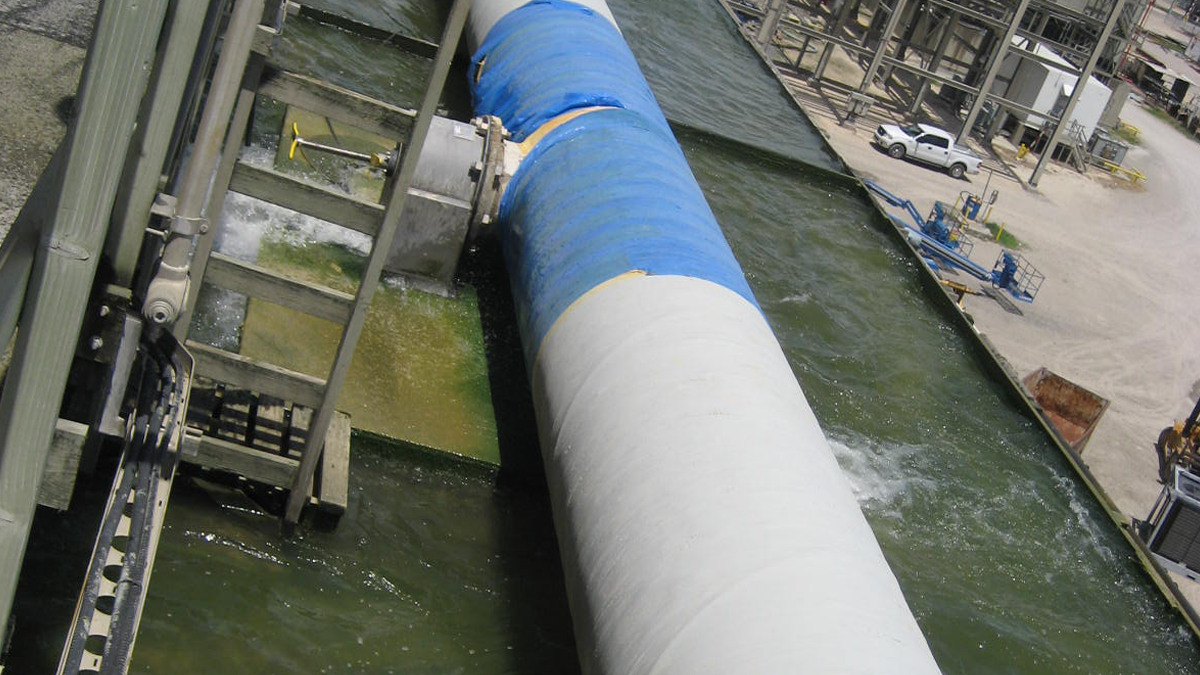

Completed repairs on cooling tower water lines
Project Overview
A North American refinery had 2 underperforming cooling tower supply lines due to deterioration. The pipes (36” in diameter and 300 ft. long) had thinning walls, breaches, leaking water and severe steel pipe pitting. Not scheduled for an outage for another 3-5 years, the refinery needed a repair.
STRUCTURAL developed a solution for the client that allowed the work to be performed while the cooling tower was operational. The high-strength fiberglass composite system featured a factory‑impregnated moisture-cured urethane (MCU) resin system that is moisture-activated by water and cures rapidly. Prior to installation, the pitted areas were resurfaced with an epoxy grout to ensure proper bond.
The solution performed for over eight years when the piping was replaced in a scheduled turnaround.
PROJECT INFO
- Location: United States
- Contractor: STRUCTURAL
